SELF-CONTAINED BREATHING APPARATUS

Emergency Breathing Systems

The Quick-Fill® System

The patented Quick-Fill System lets MSA Air Mask users refill and transfill air cylinders while the SCBA is worn, without removing the air cylinder—even in IDLH atmospheres. Use this MSA-exclusive option to:

• Fill an SCBA cylinder from a mobile compressor or cascade system in less than a minute.

• Transfill between two cylinders, providing an Emergency Breathing System.

• Extend the air supply over longer durations, using a remote compressed-air source.

Because performance is not affected, MSA Air Masks retain NIOSH certification during use of the Quick-Fill System.

The Quick-Fill System uses a special adapter assembly. On beltmounted

units, it’s located on the regulator, while MMR units

have a junction block and fitting installed on the gauge line. Air

Masks compliant to NFPA-1981, 2002 Edition have the Quick-Fill

URC fitting located at the Audi-Larm warning device. A Quick-Fill

hose with a quick-disconnect connects the air source to the

adapter for air transfer. See Bulletin 0105-92-MC for a Question

& Answer overview of Quick-Fill Systems.

Quick-Fill Hoses

25-ft lengths are stocked; other "custom lengths" are available on a special material basis. All SAE Fittings are for high-pressure service. Female quick-disconnect fittings have dust covers.

	25 ft	12 ft	10 ft	8 ft	6 ft	3 ft
FQD x FQD	485332	802690	802689	802688	802687	485331
FQD x CGA-347 Outlet	487907	802677	802675	802673	802671	492796
FQD x CGA-347 CN	487909	802685	802683	802681	802679	487427
FQD x SAE-4	487906	802704	802703	802702	802701	802705
FQD x CGA-346 Outlet	487908	802678	802676	802674	802672	492797
FQD x CGA-346 CN	487910	802686	802684	802682	802680	487428

The Quick-Fill System

Low-Pressure MMR Quick-Fill Kit (shoulder) for units purchased after 12/98	10020382
High-Pressure MMR Quick-Fill Kit (shoulder) for units purchased after 12/98	10020383
Quick-Fill adapter block only for shoulder-mounted units purchased after 12/98	10020515
Low-Pressure MMR Quick-Fill Kit (shoulder) for units purchased before 12/98	495172
High-Pressure MMR Quick-Fill Kit (shoulder) for units purchased before 12/98	495173
Quick-Fill Kit for ICM, Low-Pressure (excluding 3000 psig)	10020382
Quick-Fill Kit for ICM, High-Pressure	10020383
Quick-Fill adapter only for ICM (less coupling)	10020515

Replacement Parts for the Quick-Fill System

EBS hose package, includes 3-foot emergency transfill hose in Kevlar pouch	485366
Emergency transfill hose, less Kevlar pouch	485331
Kevlar pouch	485390
Male stainless steel quick-disconnect with SAE-10 thread, complete with dust cover (also for use as a fitting for customized refilling systems)	485391
Female quick-disconnect with SAE-4 thread, complete with dust cover	485392

RescueAire™ II

Portable Air-Supply System

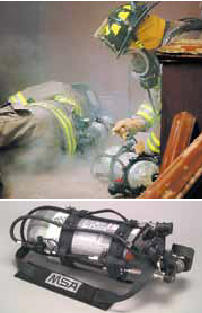

The RescueAire II Portable Air Supply System is

designed to meet the needs of Rapid Intervention

Teams (RITs). The system consists of a lightweight

Carbon-Wrapped cylinder, Quick-Fill® emergency

breathing system, ExtendAire™ emergency breathing

system, and an MMR regulator, supported by a

flame- and heat-resistant harness. The RescueAire

is a complete system that can provide emergency

breathing air for most any victim.

The RescueAire II System is available in both lowpressure

(2216 psig) and high-pressure (4500 psig)

versions. An optional-use shoulder strap is also

provided for hands-free carrying.

RescueAire™ II Portable Air-Supply System

Low-Pressure (2216 psig)	with L-30 cylinder	less cylinder
RescueAire II with L-30 Cylinder	10025491	10033312
RescueAire II, Firehawk STC MMR	10041196	10041198
RescueAire II, Firehawk PTC MMR	10041230	10041232
High-Pressure (4500 psig)	with L-60 cylinder	less cylinder
RescueAire II with H-60 Cylinder	10025462	10025492
RescueAire II, Firehawk STC MMR	10041195	10041197
RescueAire II, Firehawk PTC MMR	10041199	10041231

The ExtendAire™ System

The ExtendAire System can be used as both an

emergency breathing system and a dual-purpose

device for MMR SCBA to allow firefighters to

quickly and easily connect to an air-line.

The ExtendAire™ System

ExtendAire Air-line Hose with foster plug	812958
40" Rescue Hose	812973
ExtendAire Upgrade Kit for Threaded Firehawk MMR	10031798
ExtendAire Upgrade Kit for Quick-Connect Firehawk MMR	10031797
